VacuMaster Light
Application
- For example, metal plates, plastic sheets, barrels, cabinets, furniture parts or sections
- Its versatility allows it to be used in processes such as component assembly, packaging and machine loading
Design and Function
- Compact and light vacuum lifting device
- Pneumatic vacuum ejector with high suction capacity
- Central control button for vacuum control

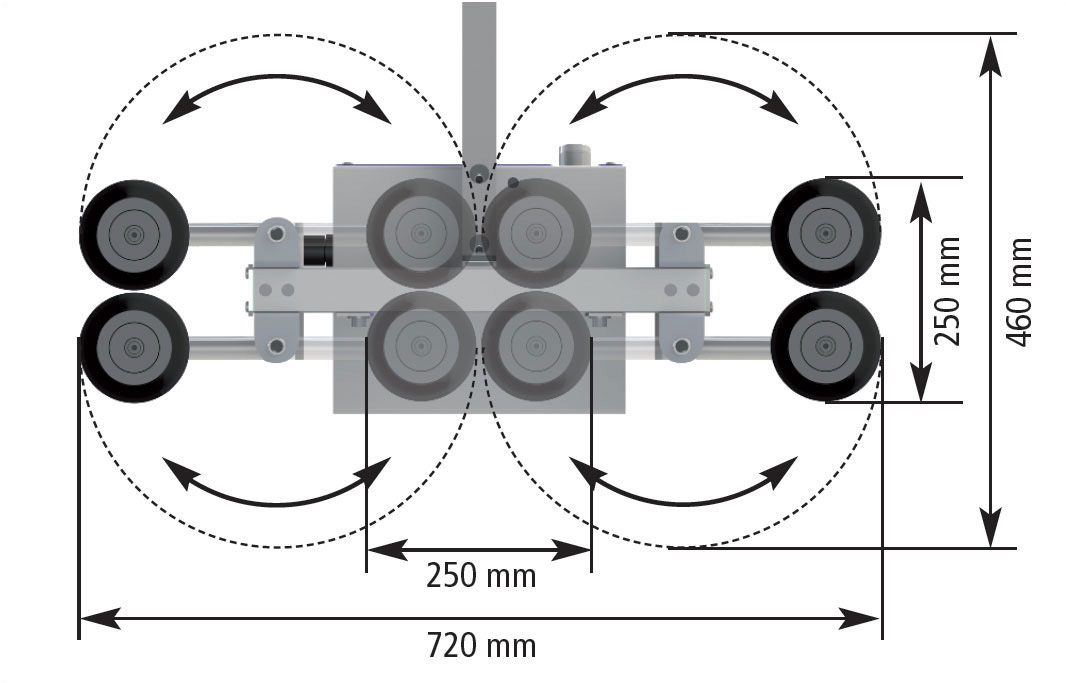

- Choose between one large suction plate or four hinged cup mounting arms that are flexible and continuously adjustable
Your Benefits
- Ergonomic operation and low weight allow you to work for long periods without fatigue
- Vacuum grippers can be adjusted quickly and easily to handle different workpieces
- Quick and easy installation and start-up
| Type | Max. lift capacity* [kg] | Min. workpiece format [mm] | Max. workpiece format [mm] | Length L [mm] |
|---|---|---|---|---|
| Light 100-1 | 100 | 250 x250 | 1,500 x 800 | 260 |
| Light 100-4 | 100 | 250 x 250 | 2,000 x 800 | 400 |
