Grid Table Systems

For Efficient Five-Axis Processing on Grid Tables

Schmalz vacuum blocks for grid tables enable simple and flexible use; without complex installation. The non-slip fixings enable secure clamping of the workpieces even with high machining forces. This makes them ideal for complex five-axis applications without a wear plate.





Grid Table Systems

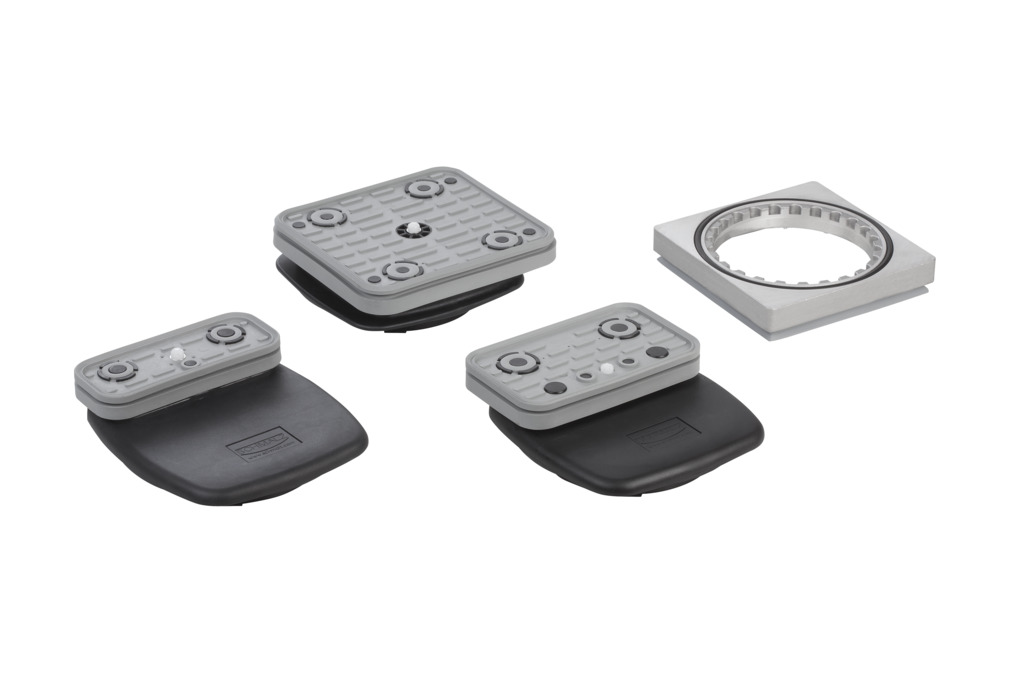

Vacuum Blocks VCBL-R

  • Vacuum clamping system for CNC machining centres with grid table
  • Suitable for all common grid geometries (slot width 6 mm to 7.5 mm, slot depth 6 mm to 7 mm)
  • Suitable for complex five-axis machining, such as the production of recesses and the trimming of panels
  • Simple and fast positioning of the vacuum blocks with the corres ponding positioning inserts
  • Safe and non-slip clamping of the workpiece with the special friction pad on the suction area


Grid Table Systems

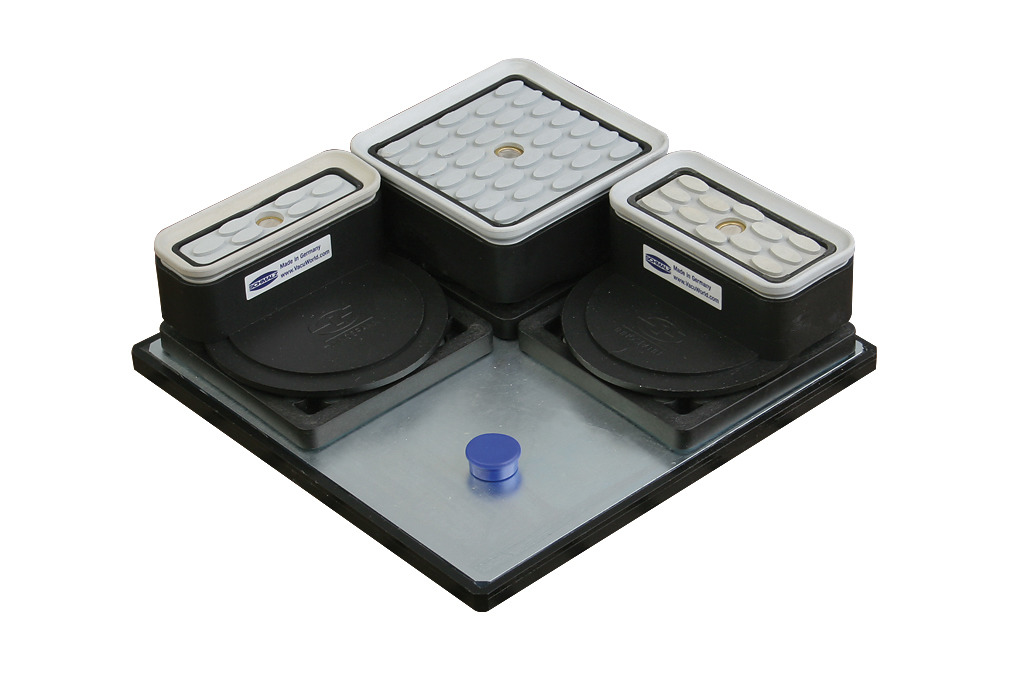

Innospann Vacuum Blocks for Grid Tables

  • Flexible vacuum clamping system for CNC machining centres with grid table
  • Suitable for complex five-axis machining
  • The suction cup mountings are placed directly in the grid and fitted with suctions cups in accordance to the workpiece
  • Variable effective working height through various suction cup heights and optional spacer rings


Grid Table Systems

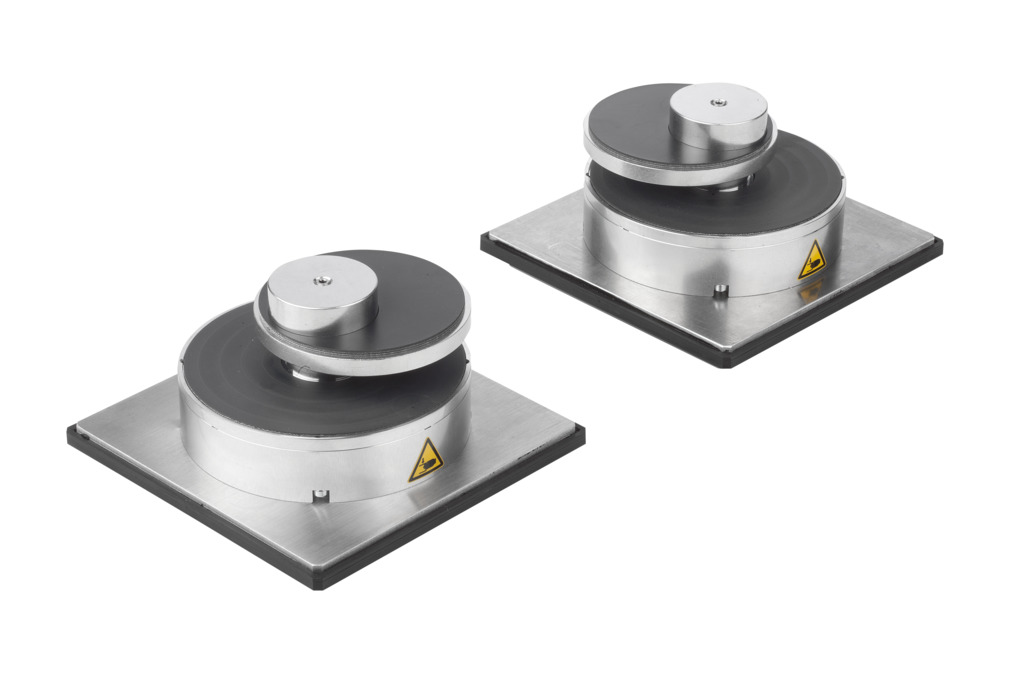

Mechanical Clamp ISMC-R

  • Aluminium mechanical clamp for narrow and curved workpieces, such as frame parts
  • Is placed directly in the grid without an additional adapter ring
  • Clamping force 700 N, clamping range from 12 mm to 80 mm*
